Sprayer and nurse wagon in one.

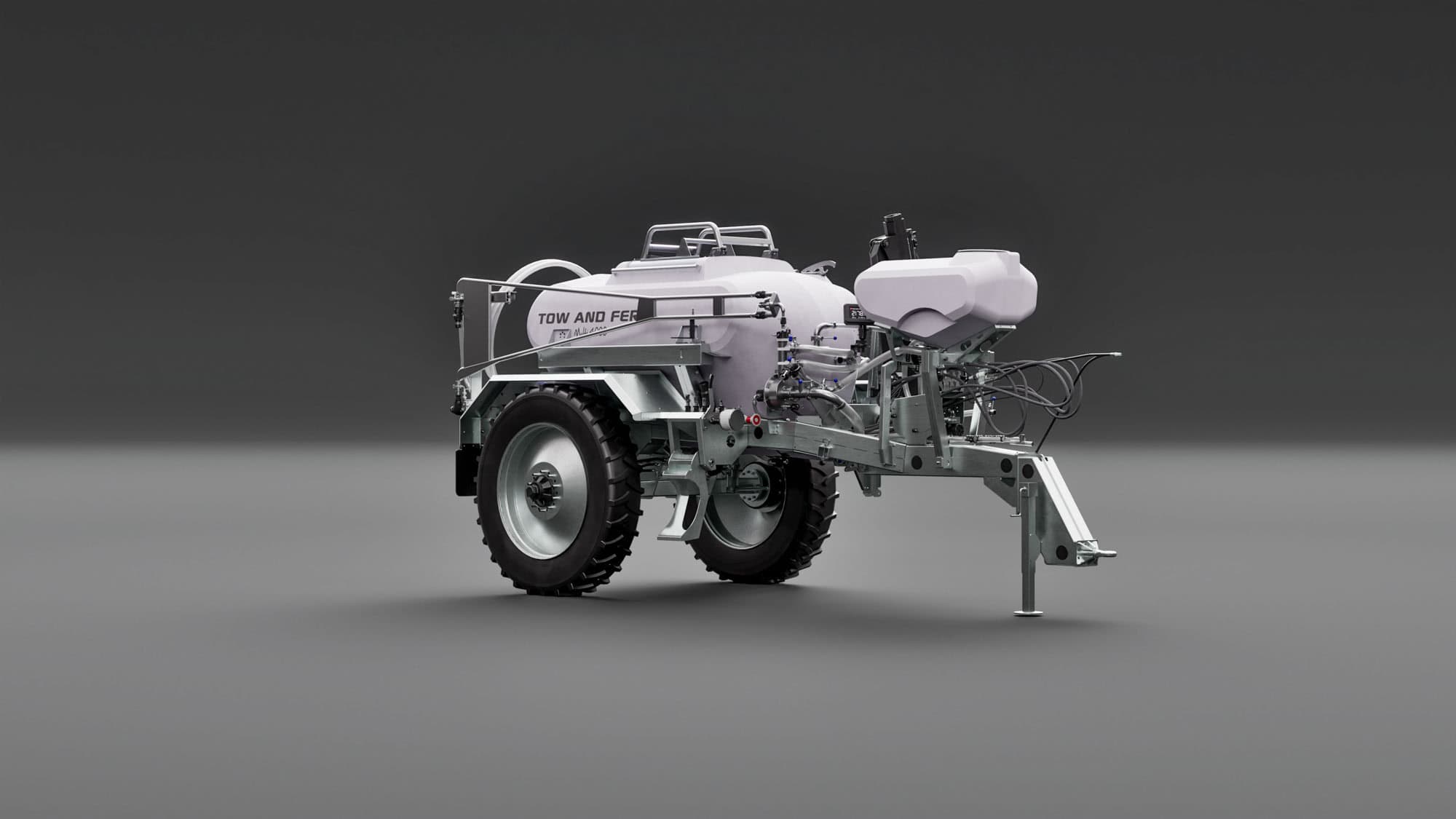

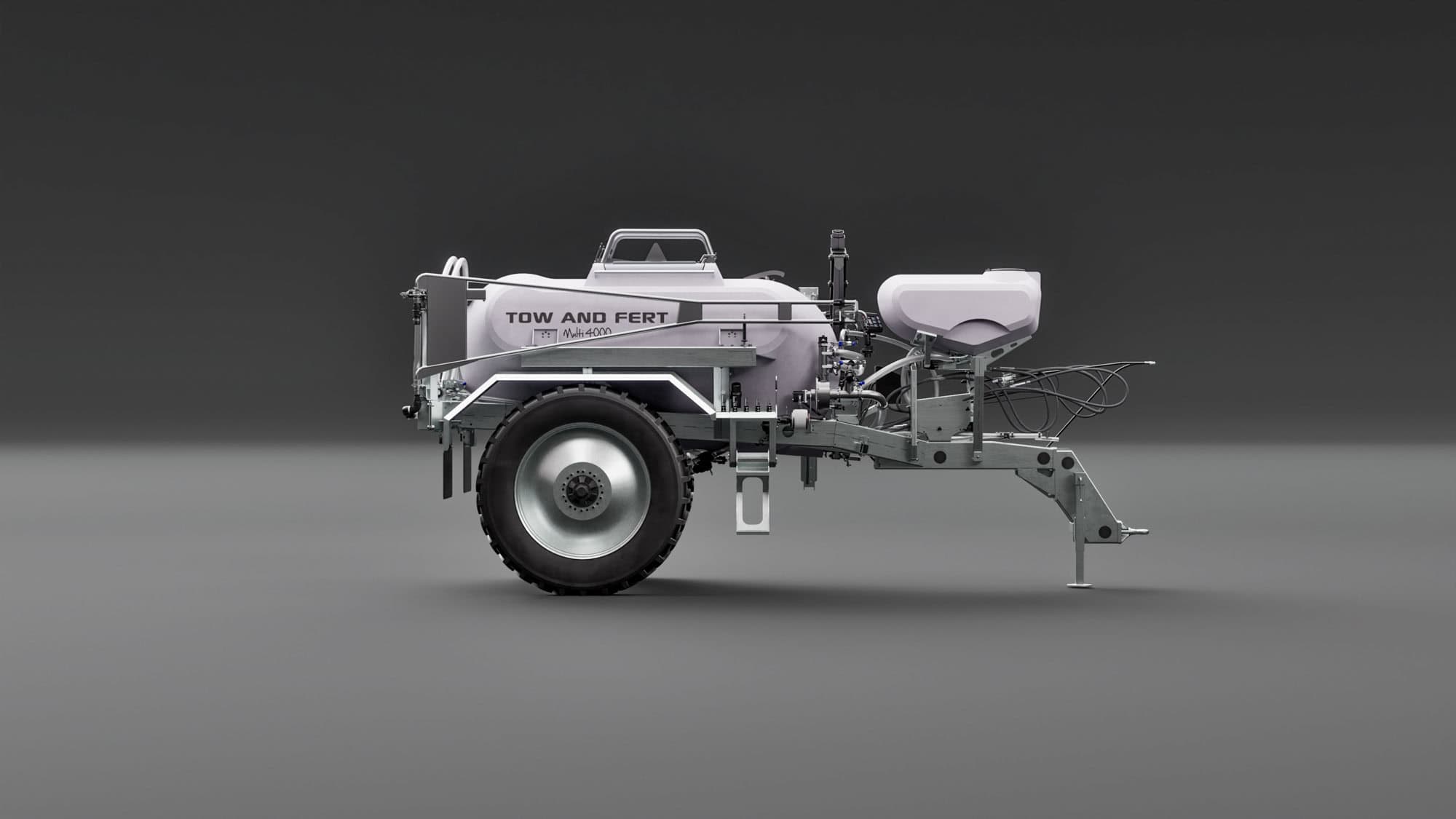

Tow and Fert MultiCrop 4000

The MultiCrop 4000 is a dual purpose ultra fine particle sprayer and nurse wagon for the cropping industry. It applies fertiliser, biologicals, ultra-fine particles, through nozzles designed to stay clear on mixes that block conventional sprayers.

Tow and Fert MultiCrop 4000

Tank size

4000 L

Area per load

40 ha

Application rate

50 – 500 litres/hectare l/ha

Attachment style

Trailed (optional dolly)

Attachment vehicle

160hp tractor or greater

Agitation powered by

55 L/min hydraulic motor

Gallery

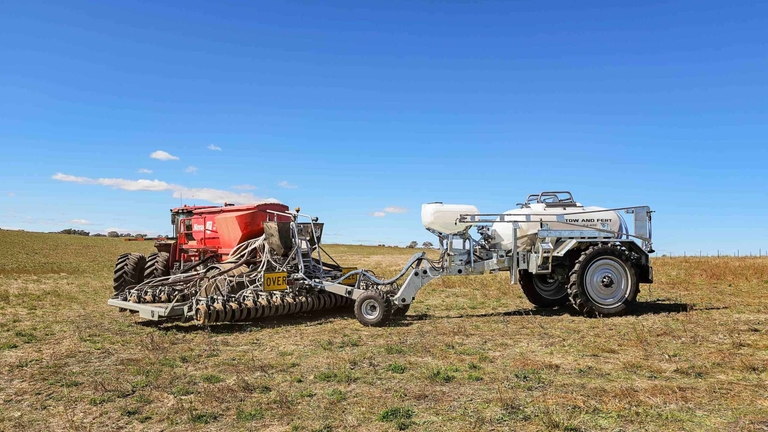

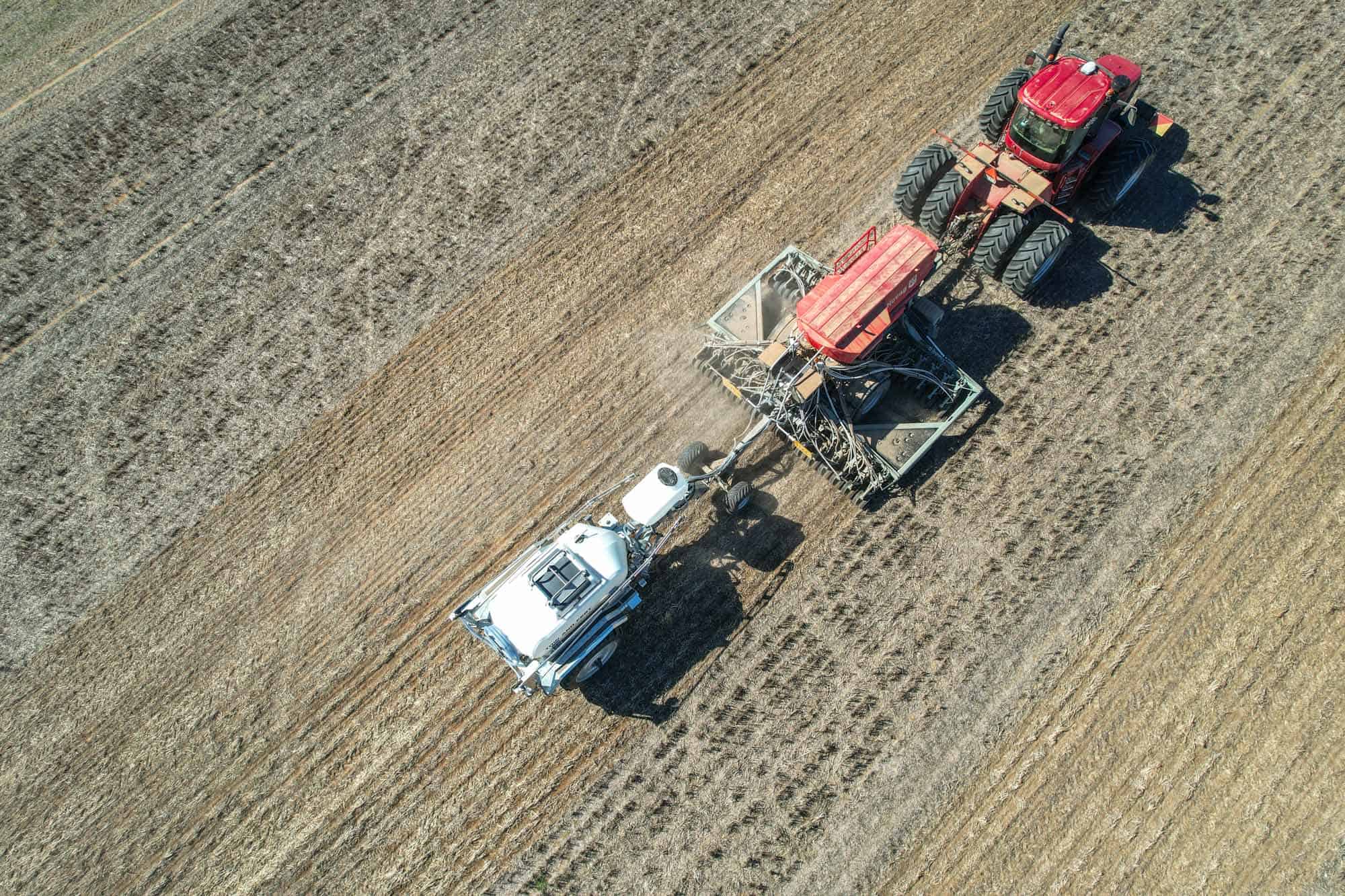

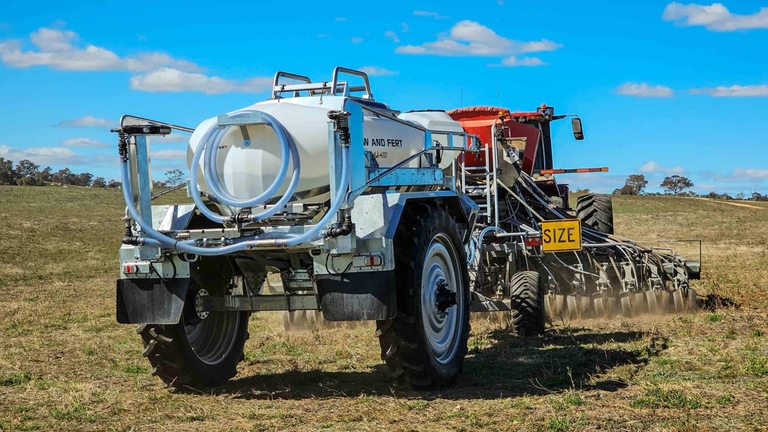

Tow and Fert MultiCrop 4000Tow and Fert MultiCrop 4000 sprayer connected to a John Deere tractor, with its spray booms unfolded in a dry field.Aerial view of a red tractor towing a Tow and Fert MultiCrop 4000 sprayer across a harvested field.A Tow and Fert running as a nurse wagon behind an air seeder in a dry paddock.Tow and Fert MultiCrop 4000 being filled through its top filling hatch using an auger, with large fertiliser storage silos in the background.Aerial view of the Tow and Fert MultiCrop 4000 connected to a red tractor, showing its main tank, flush tank and folded spray booms.Top view of the Tow and Fert MultiCrop 4000 being filled with fertiliser through its open filling hatch.Tow and Fert MultiCrop 4000 sprayer connected to a tractor, drawing water from a farm pond through a suction hose.Aerial view of a red tractor towing a Tow and Fert MultiCrop 4000 sprayer across a green field, with spray booms extended.
Specifications

Tank size

4000 L

Area per load

40 ha

Application rate

50 – 500 litres/hectare l/ha

Attachment style

Trailed (optional dolly)

Attachment vehicle

160hp tractor or greater

Agitation powered by

55 L/min hydraulic motor

Pump model

Metalform Stainless 3” Centrifugal Trash Pump

Pump performance

1200 litres per minute at 0 metres lift. Max lift = 4 metres

Pump powered by

Hydraulics – 33 litres/min

Dry weight

4,100kg

Full weight

up to 10,600kg (depending on mix SG)

Size

6.20m (L) x 2.80m(min) – 3.40m (max) (W) x 3.50m (H)

Optional extras

Nurse Wagon

In-cab Rate Assist

Crane Kit

Section Control

Flush Tank

Tow Dolly

Compost Basket

Description

The Tow and Fert MultiCrop 4000 dissolves solid fertilisers for foliar application and holds ultra-fine particles in suspension, so they go out evenly across the full 22-24 metre width.

It also works as a nurse wagon, supplying conventional, biological or organic fertilisers along with ultra-fine particles to air seeders, rippers and seed drills.

Our boom circulation design keeps the purpose built stainless steel nozzles clear on the mixes that block conventional sprayers. Agitation runs off a 55 litre per minute hydraulic motor, and the Metalform 3 inch stainless trash pump moves 1200 litres per minute.

The 4000 litre tank covers up to 40 hectares a load at 50 to 500 litres per hectare, behind a tractor of 160hp or greater.

A 500 litre flush tank lets you flush the system straight after use, which cuts build up and extends the life of the machine.

WHAT’S BUILT IN

Built for heavy mixes, feature by feature

We built the Tow and Fert to do what most standard sprayers can't.

FeatureTow and Fert
Even spread, under 15% COVEven application you can measure, test it on your own farmYes
Dissolves 1 part urea to 2 parts water, fastHigh-concentration mixes without clogging or long load timesYes
Suspends 2 parts lime flour to 1 part waterKeeps heavy fine particles in suspension, evenly, all the way to the nozzlesYes
Boom recirculation on every nozzlePatented system, works even on single-nozzle machines - no blockingYes
Purpose-built Metalform 3 inch stainless pumpEngineered in-house after off-the-shelf pumps couldn't take the punishmentYes
Runs at 20-22psi to protect biologicalsLow pressure keeps microbes and living inputs alive through applicationYes
Onboard weigh scalesKnow exactly what's in the tank, load accurately every timeYes
Companion Mix appMix rates, nozzle selection and ground speed worked out for youYes
2,500+ strong farmer communityReal users sharing results, trials and advice, not just customersYes
Commercial-grade build, over-engineered to outlastCommercial construction that keeps performing, day in day outYes
Travelling service & support - globallyOn-farm support and servicing, not a phone queueYes
Pioneered and built in New ZealandDesigned and manufactured in Dannevirke, over 15 years in the paddockYes
